ROUGH ROADS, GRAVEL OR DIRT. HOWEVER YOU CHOOSE TO ROLL, THIS BIKE DOES IT ALL. THE LIGHTWEIGHT, SMOOTH-RIDING COMPOSITE FRAMESET AND ADJUSTABLE WHEELBASE MAKE IT MORE CAPABLE THAN EVER.
KEY PERFORMANCE FACTORS
Fast and light
Advanced composite frame and fork save more than 160 grams compared to previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.
Tuned compliance

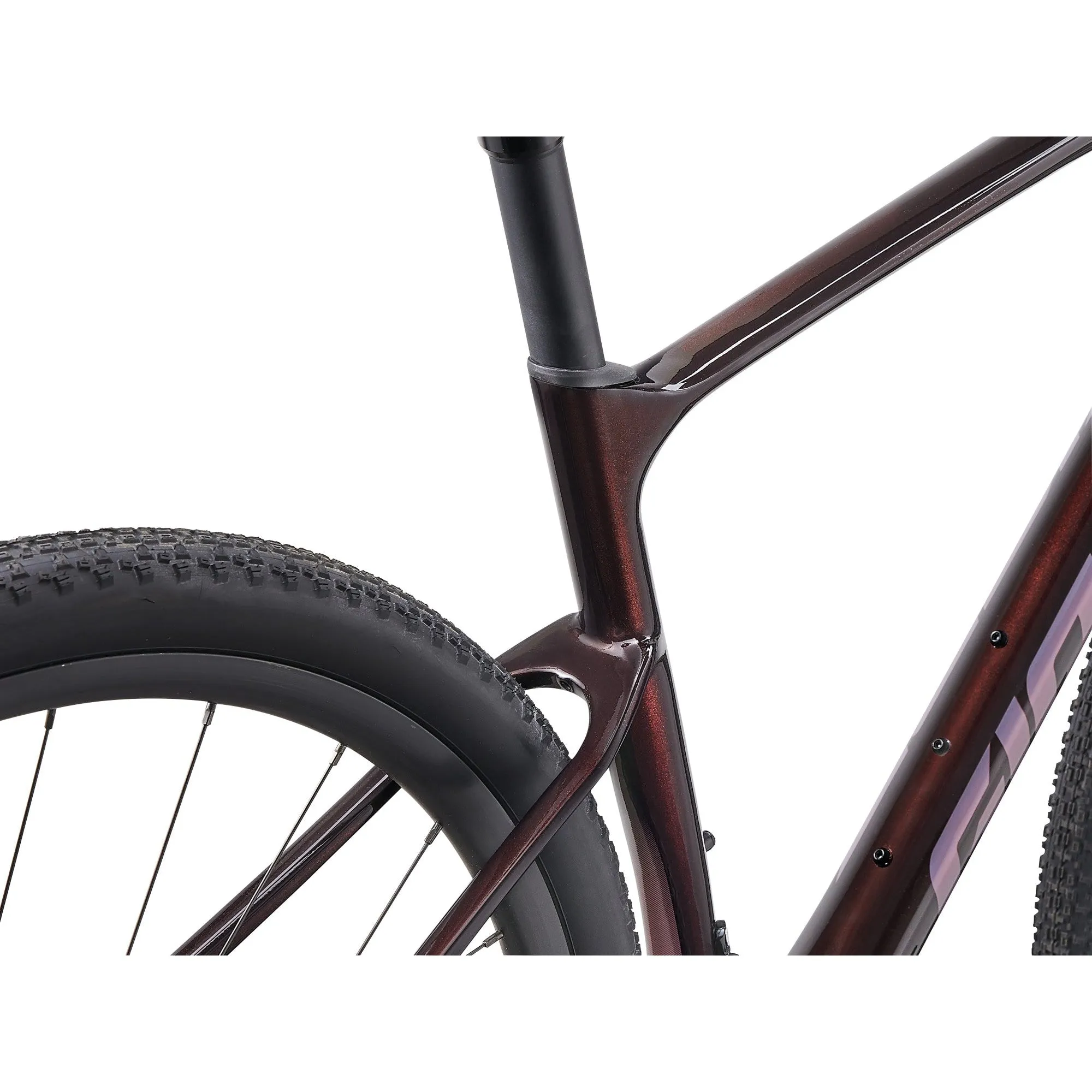

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain

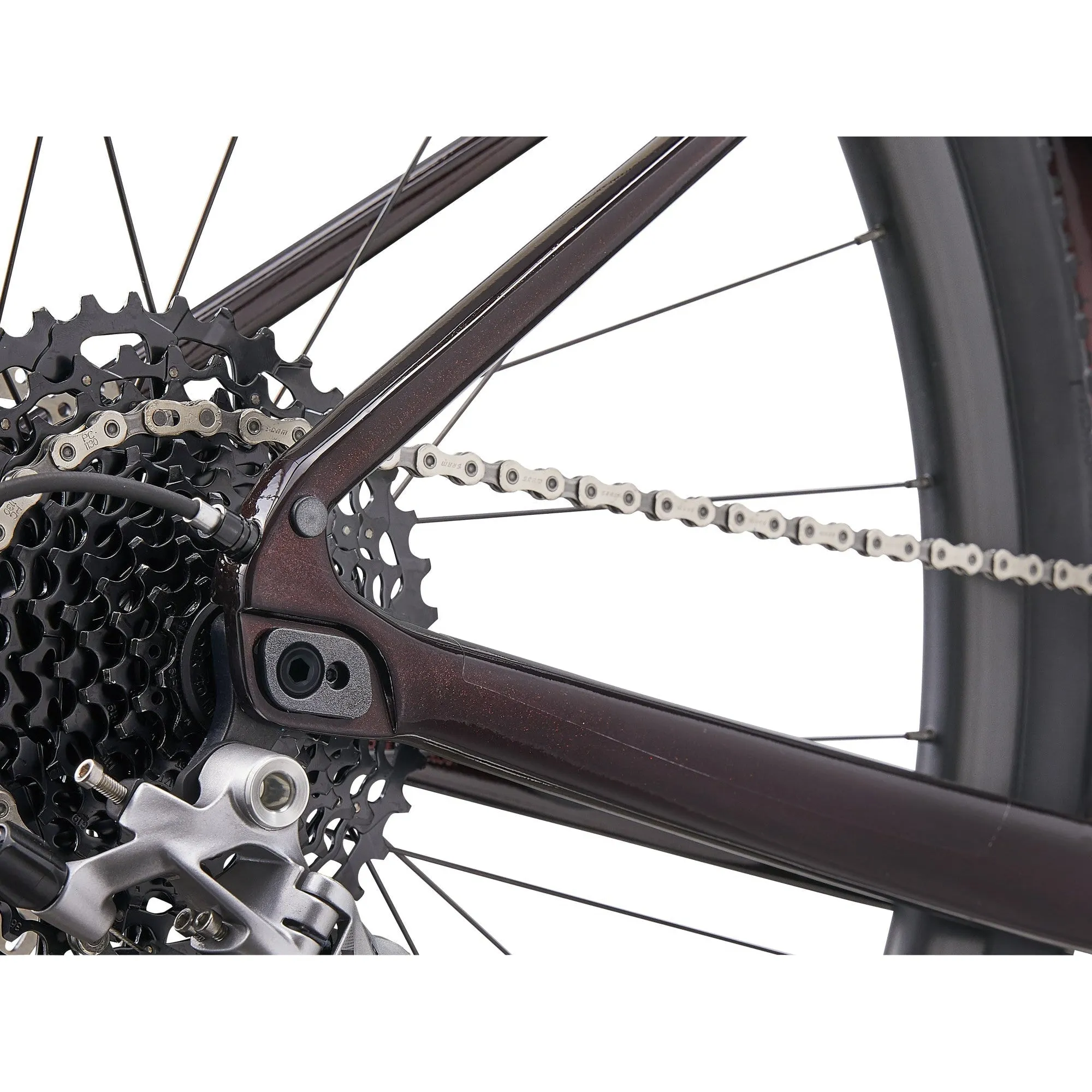

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
| Sizes | S, M, M/L, L |
| Colors | Cordovan |
| Frame | Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc |
| Shock | N/A |
| Handlebar | Giant Contact XR D-Fuse, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm |
| Grips | Stratus Lite 3.0 |
| Stem | Giant Contact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm |
| Seatpost | Giant Contact Switch, dropper, 30.9mm S:345mm, M:345mm, M/L:345mm, L:395mm |
| Saddle | Giant Approach |
| Pedals | N/A |
| Shifters | SRAM Rival 1, 1x12 |
| Front Derailleur | N/A |
| Rear Derailleur | SRAM Rival 1 |
| Brakes | SRAM Rival 1 hydraulic, Giant MPH rotors [F]160mm, [R]160mm |
| Brake Levers | SRAM Rival 1, left lever dropper switch |
| Cassette | SRAM Rival, 11-speed, 11x42 |
| Chain | SRAM Rival, 11-speed, 11x42 |
| Crankset | SRAM Rival D1 Wide DUB, 40t S:170mm, M:172.5mm, M/L:172.5mm, L:175mm |
| Bottom Bracket | SRAM DUB, press fit |
| Rims | Giant P-X2 Disc wheelset, alloy |
| Hubs | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Tires | Maxxis Rambler, 700x45c, tubeless |
| Extras | Giant 1x chain guide, tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position |
| Max Tire Clearance | 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position |
| Weight | The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
